Bigend torqueI would like to know
#57769 05/09/14 07:26 PM
Joined: Oct 2013
Posts: 9
Queensland, Australia
Harold
Offline
Novice
I would like to know the torque to use for the studs connecting the conrod to the crankshaft.
Model: 193702
Type: 0123 01
Code: 84030809
319cc 8hp
Re: Bigend torqueI would like to know
Harold #57773 05/09/14 11:38 PM
Joined: Jan 2009
Posts: 6,926
Likes: 10
Melbourne, Australia
grumpy Offline
Pushrod Honda preferrer
***

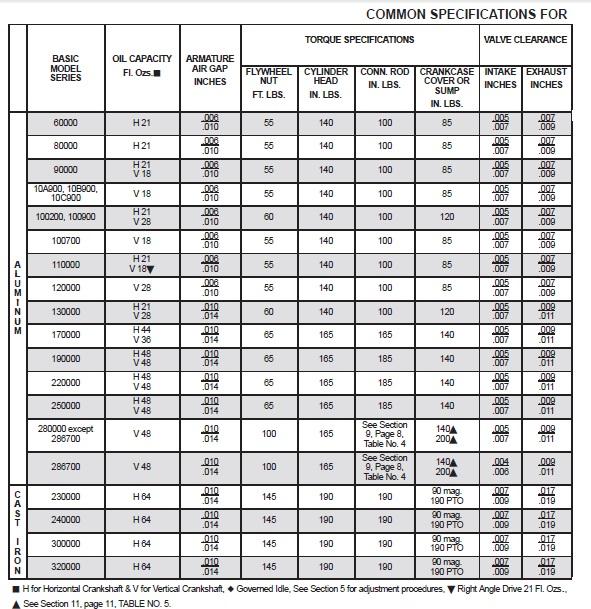

The specified torque is 185 inch-pounds:
[Linked Image]
Re: Bigend torqueI would like to know
Harold #57776 06/09/14 05:41 PM
Joined: Oct 2013
Posts: 9
Queensland, Australia
Harold
Offline
Novice
Thanks Grumpy
Harold
