Hi guys, after rebuilding the transaxle in the ride on I recently bought I'm now facing a problem with the brake setup. It appears that the previous owner/service centre modified the brake system and the photos I took before stripping it all down don't show enough detail on how it goes back together.
The part I'm talking about here is the brake rod where it connects to the brake attachment on the transaxle.
The image above shows the missing part but even that doesn't show how the brake control system goes together.
It also doesn't show a rear to front image on how the parts go together.
I have a spring, 2 washers, a castellated nut and a split pin.
Do these parts go between the transaxle case and the brake control level or between the brake control lever and the castellated nut?

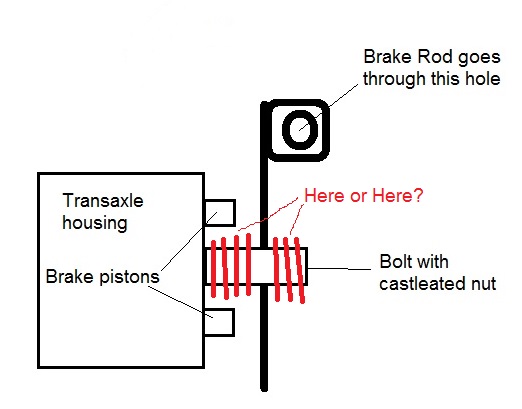

Above is a simple image hopefully showing my predicament?
Question:- Any idea how I can order the missing part when it's not listed in the parts listings at all?
Hoping someone can help me here...
Cheers
Steve
