by maxwestern - 25/04/24 10:58 AM
|
|
|
Joined: Jan 2017
Posts: 5
OP
Novice
|

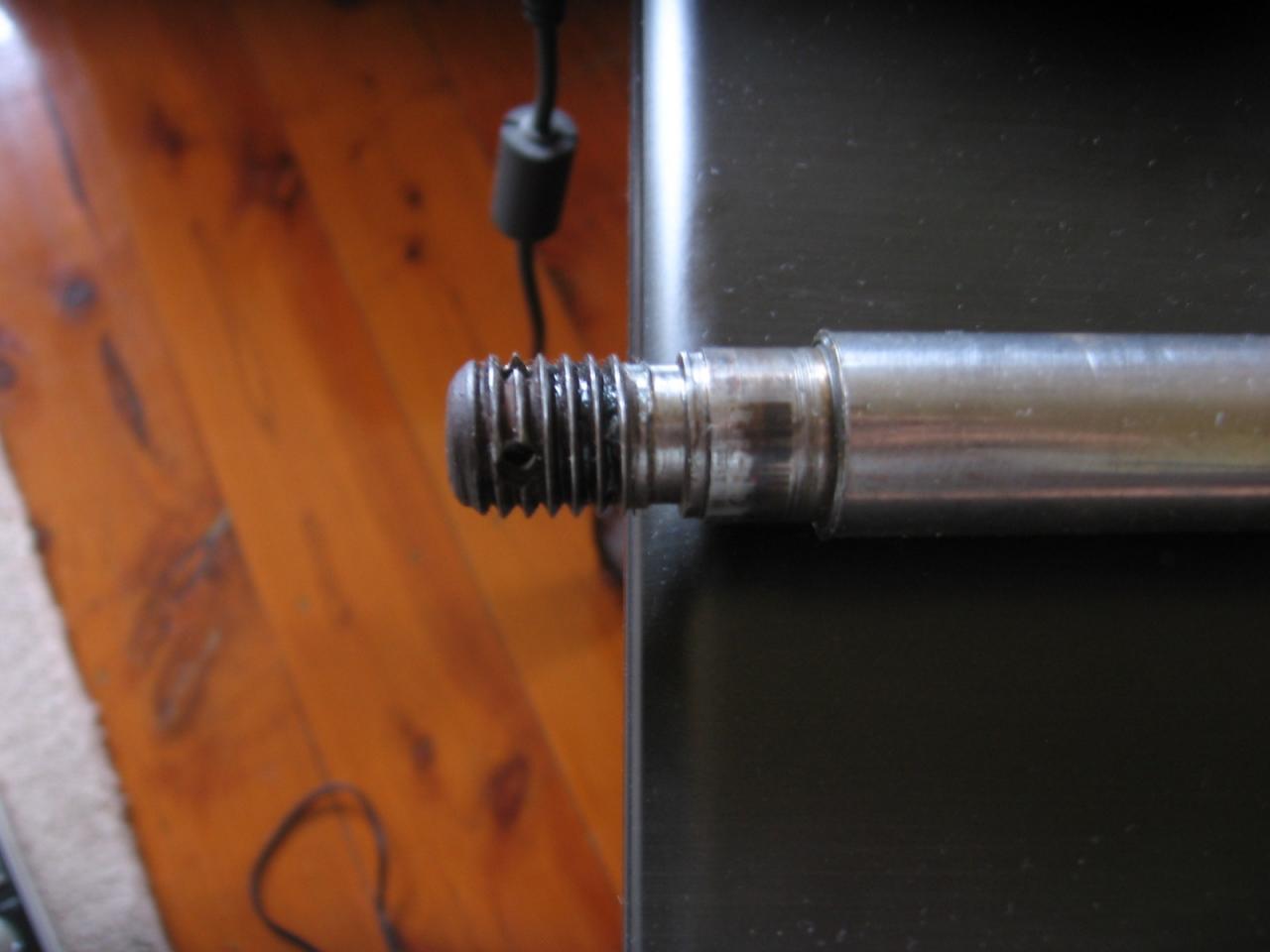

Ok so first time poster great forum so far, so my question is in the photo my old shaft has a step that the blade sits on and it is flogged out towards the thread so when the cup washed is fitted the blade floats around. I know that I need a new one but all the pics I have seen show the shaft not being stepped, or am I just seeing the wrong pics. Oh and it's a series 90. thanks in advance Colin [img][IMG] http://i65.tinypic.com/35luvfb.jpg[/img][/img]
|
|
|
|
Joined: Nov 2013
Posts: 693
Qualified Senior
|
To add an image in a post use the fifth icon from the left, the one with the blue arrow, and follow the instructions in the new screen that opens.
|
|
|
|
Joined: Jan 2017
Posts: 5
OP
Novice
|
that was the only one I didn't click lol thanks Col
|
|
|
|
Joined: Jan 2012
Posts: 1,842 Likes: 14
Moderator
|
I'd suspect that the smaller 'step' is a wear artefact due to the loose blade, not an original feature of the part. There should be cup washers on both sides of the blade, when installed correctly. They're No. 34 in this diagram from the IPL: This shaft is correct for both full crank and PowerTorque engined TAC's. https://www.outdoorking-forum.com.au/edgers/...genuine-victa-tilta-cut-spindle-me63216a
Cheers, Gadge
"ODK Mods can explain it to you, but they can't understand it for you..."
"Crazy can be medicated, ignorance can be educated - but there is no cure for stupid..."
|
|
|
|
Joined: Jan 2017
Posts: 5
OP
Novice
|
It seems that the lip is exactly right for the width of the blade(too good to be an accident?) and that the bearing fits snug as well the gap from the lip to the thread also seems longer than the others that I have seen online, maybe looking at the wrong one but have seen no other? So what you are telling me is that there is only one type of shaft for the tac regardless of year make. thanks Col
|
|
|
|
Joined: Jan 2012
Posts: 1,842 Likes: 14
Moderator
|
So what you are telling me is that there is only one type of shaft for the tac regardless of year make. Yes. I've checked the parts lists for both, and the part number is the same.
Cheers, Gadge
"ODK Mods can explain it to you, but they can't understand it for you..."
"Crazy can be medicated, ignorance can be educated - but there is no cure for stupid..."
|
|
|
|
Joined: Jan 2017
Posts: 5
OP
Novice
|
Thanks for your help, it has cleared it up now I can order the part.
|
|
|
|
Joined: Jan 2015
Posts: 1,487 Likes: 23
SENIOR TECHNICIAN
|
And this image should clear up your question about if it is stepped or not.
|
|
|
