#77699 05/09/16 06:35 AM
Joined: Nov 2013
Posts: 6,938
Likes: 322
Forum Historian
Hello ODK History Lovers
The Rover Regal was Rover Mowers top-of-the-line residential lawnmower for the 1970s.
This record covers only the original Model 27 chassis, even though 'Regal' is still
a model name used by the current owners of Rover today.

Its 19" cutting width combined with a high-arch chassis put it above other models
in the conservative name, range lineage (Prince, Regent, Baron, Pedigree, and
Thoroughbred).

It was powered by at least three different Briggs & Stratton engines: the 148cc 3.5hp;
the 187cc 4hp; and the 206cc 5hp. All engines had a higher specification: Hushtone
muffler, dipstick, air filter, and chrome bits. There is also good evidence that Kirby
and Villiers 2-strokes also powered the Regals.

[Linked Image]

TO BE CONTINUED ...

Portal Box 6
Joined: Nov 2013
Posts: 6,938
Likes: 322
Forum Historian
PART TWO - Manuals

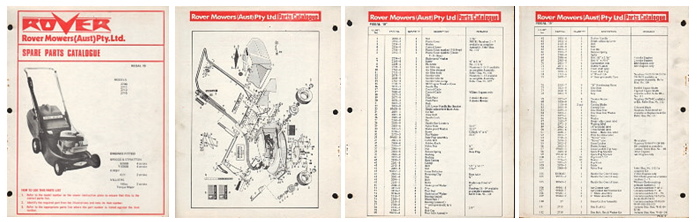

I have a good copy of a Rover Regal Parts Manual.
Again, members are welcome to download for personal use.

Interestingly, the Parts List says Kirby & Villiers engines were also
fitted to Regals. I've never seen any.

Models: 2709 2711 2712 2715

[Linked Image]
[Linked Image]

Attachments
manual_rover_regal_parts.pdf (659.56 KB, 23 downloads)
ROVER - MANUAL - REGAL - PARTS LIST
Joined: Nov 2013
Posts: 6,938
Likes: 322
Forum Historian
[Linked Image]

Collectors don't seem to have found the Regal...

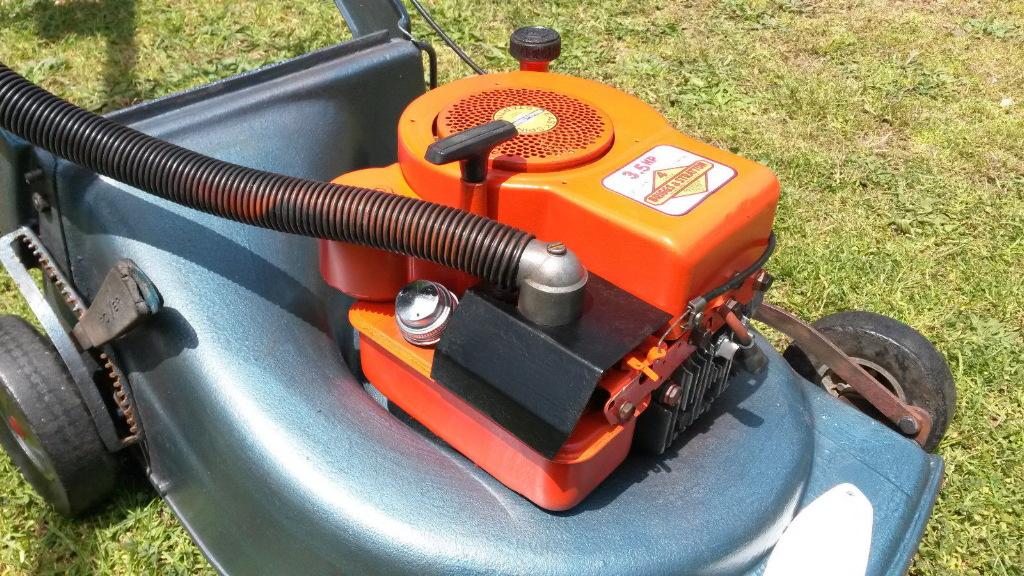

2014 Auction Photo:
[Linked Image]


Joined: Nov 2013
Posts: 6,938
Likes: 322
Forum Historian
[Linked Image]

Rover c1980 Brochure:
https://www.outdoorking-forum.com.au/forum/ubbthreads.php?ubb=showflat&Number=67345

[Linked Image]
Are you proud of QLD's contribution to lawnmowers?
Would you like to comment on the Regal?

A topic has been created in the Old Soap Box HERE.

Last edited by CyberJack; 06/09/16 05:58 AM.
