Victa Utility - Plastic Height Adj Segment

the rust had gotten to all the moving parts so a few days of work to get functioning again. question for the shop.

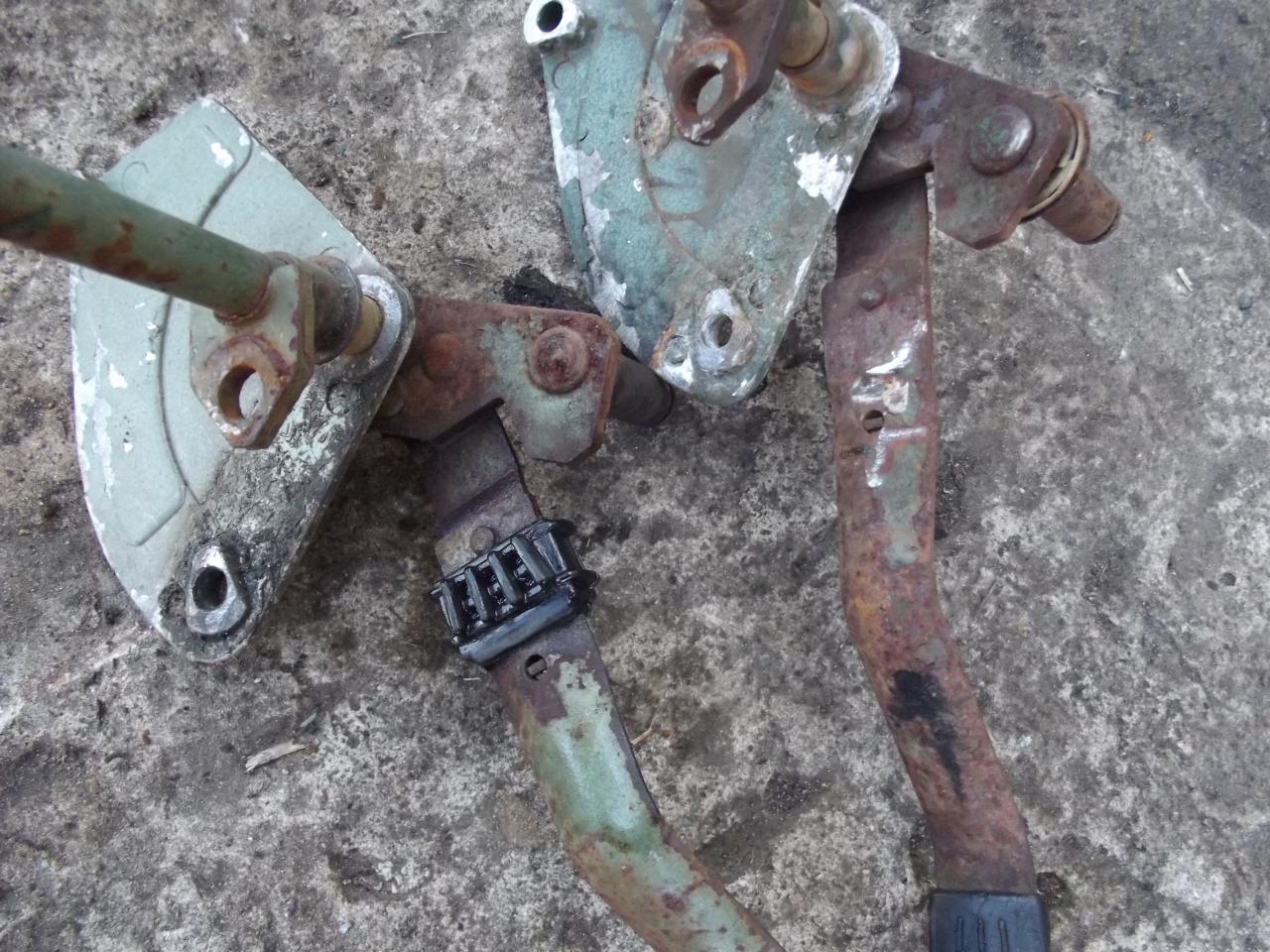

do you have any of these height adjuster plastic boot things??

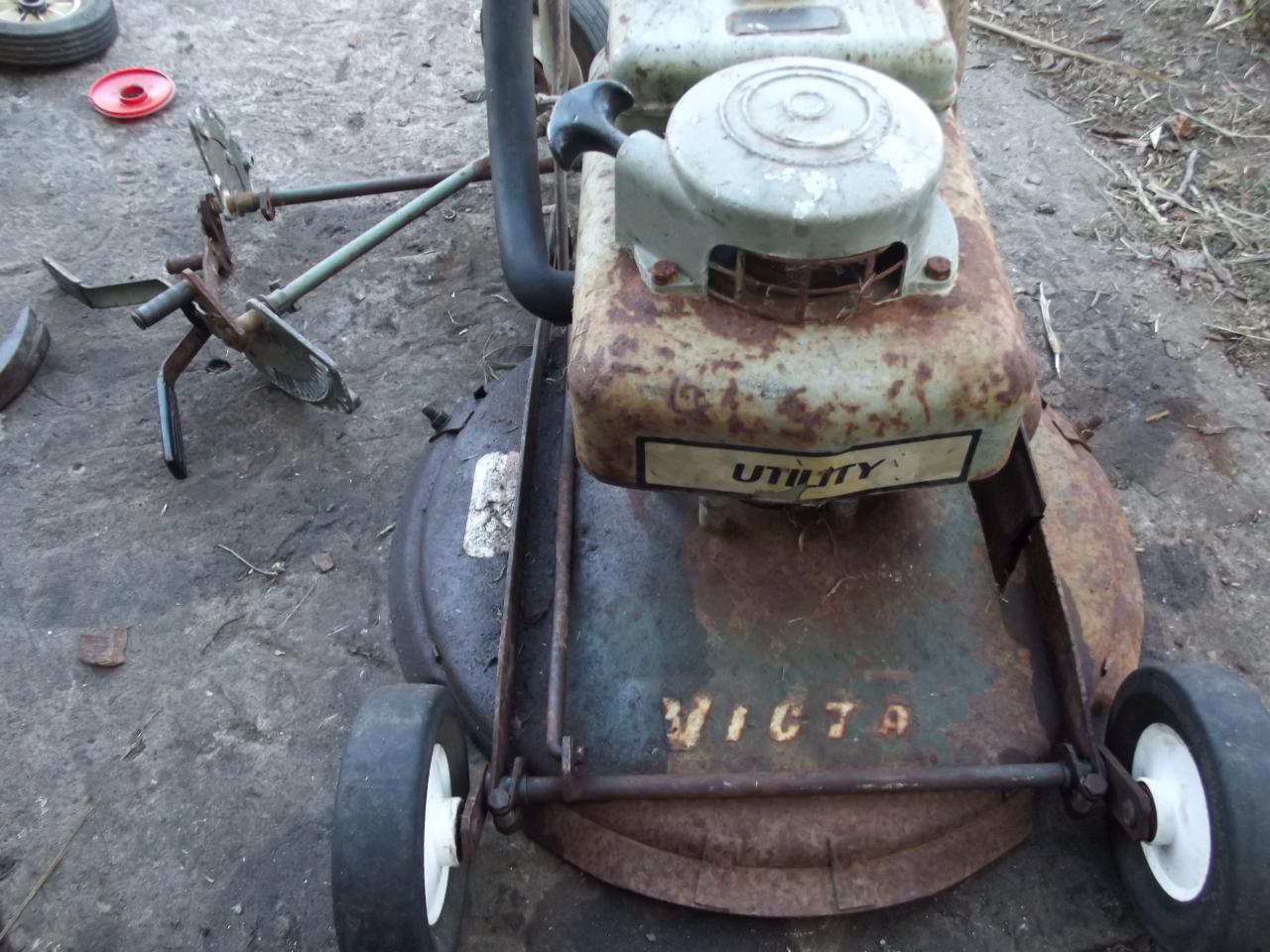

[Linked Image]

one more quicky, is this motor supposed to rev as high as it does?? never had one rev so high.
thanks
sean

Last edited by CyberJack; 20/05/16 07:05 AM. Reason: Topic heading.

motorwannabe

Re: Victa Utility - Plastic Height Adj Segment

seanw #75519 20/05/16 02:20 AM

Joined: May 2012

Posts: 467

victoria australia

tomo4192

Qualified Junior

Hey man the hight adjuster segment come up on eBay every now and then I use them with restorations but if I'm going to use the mower I usually use a screw and nut with the thread flattened on each side so it fits in the hight notches . As far as the teeing goes it may have a stripped governor gear or may just need adjusting to factory setting which isn't hard I would post the instructions but they are packed away at the moment I'll see if I've got a carby I can demonstrate on

Re: Victa Utility - Plastic Height Adj Segment

seanw #75544 20/05/16 08:19 PM

Joined: Jan 2012

Posts: 1,842

Likes: 14

Gippsland, Vic

Gadge

Moderator

G'day folks,
This machine will have a 3L carby, which isn't governed. Don't know that there was ever a full throttle RPM spec for these, but that for the later G3 governed carb models is 3800-4200rpm.

As tomo4192 says, your best chance for a height adjuster segment is a NOS one on FleaBay - after all this is a ~50 year old mower! It comes in a set with the handle cover.

There's one up there now, ending Sunday. Plug 'vintage victa height' into the search window there to find it.

Cheers,
Gadge

"ODK Mods can explain it to you, but they can't understand it for you..."

"Crazy can be medicated, ignorance can be educated - but there is no cure for stupid..."

Re: Victa Utility - Plastic Height Adj Segment

seanw #75567 22/05/16 08:07 AM

Joined: Apr 2015

Posts: 715

Likes: 1

nsw australia

seanw

thanks for the input fellas. i recon i will go with tomos idea, after. well how can i say this. i failed to check the exhaust port before attempting to start, with a drill. after blowing the gasket i found the exhaust port half blocked with really hard crap. so i will get to work pulling it all apart and making a new gasket, and i thought it was an easy fix(all in need to do is fix the height adjuster)wheels, ect HAHA 4 days of work. why do i do it?

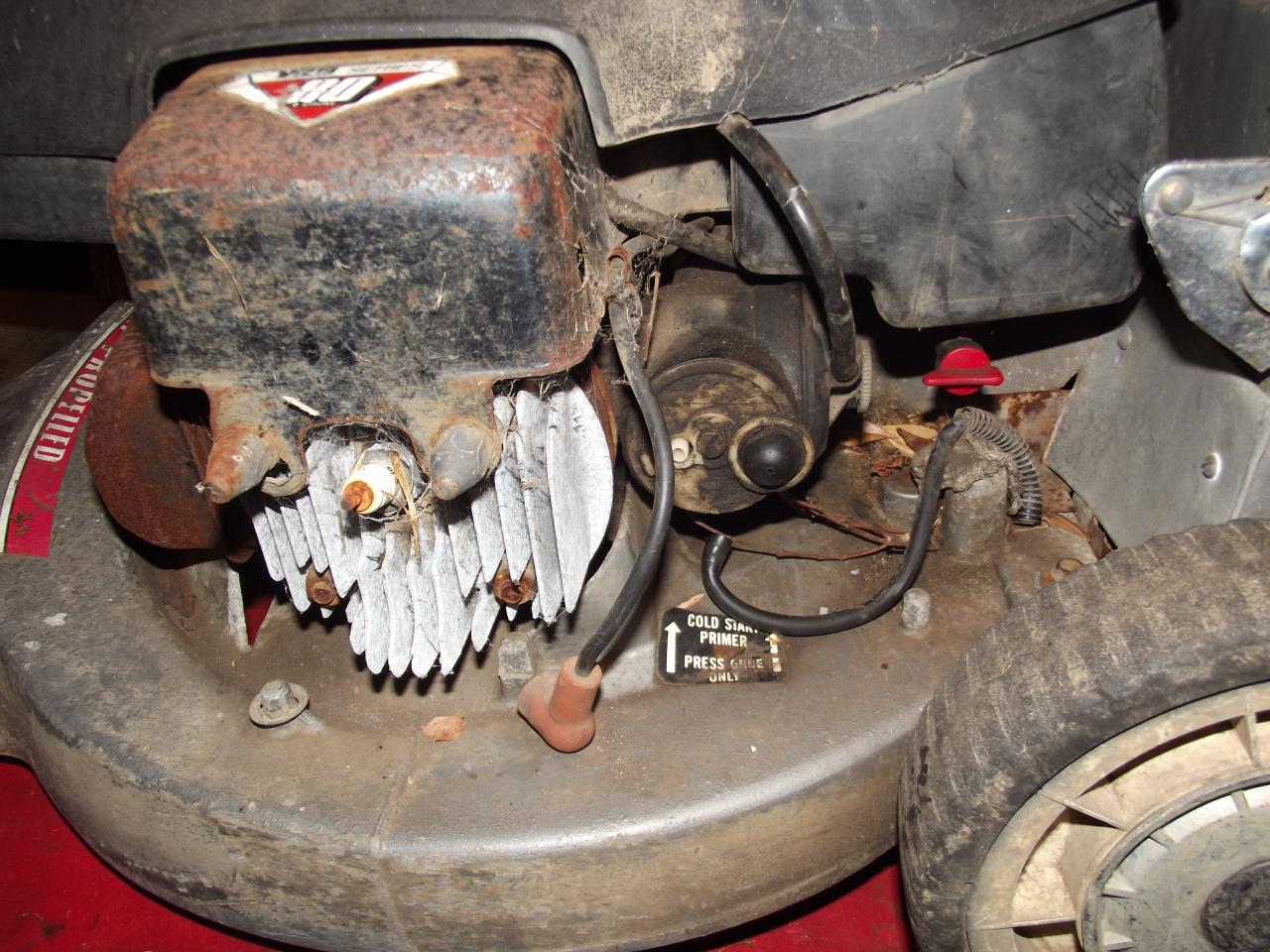

my next victim [Linked Image]
