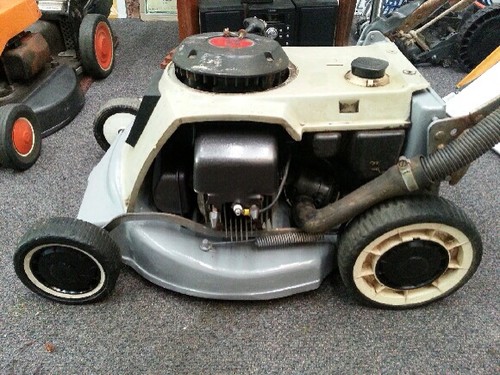

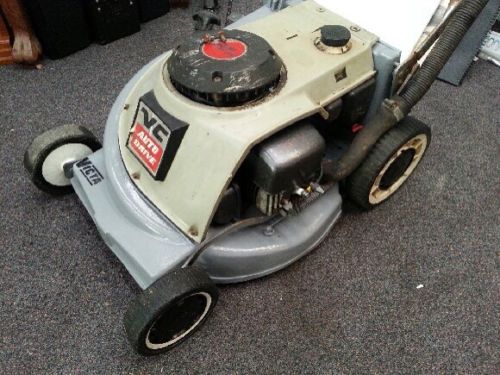

won this auto drive on ebay. all the auto drive gear has been gutted an its not running. gotta get it from new castle aswell. got it pretty cheap so will have a tinker when I get it back to mine. ![[Linked Image]](https://www.outdoorking-forum.com.au/forum/uploads/usergals/2013/10/full-6043-12923-kgrhqvjufe13ziwycbsy31o4svg60_12.jpg) ![[Linked Image]](https://www.outdoorking-forum.com.au/forum/uploads/usergals/2013/10/full-6043-12924-t2ec16fy0fiuwmyrubsy31jsvk60_12.jpg)
|
|
|
|
|
|
Joe Carroll
Unregistered
|
Nice work, looks like somone may have had a go at restoring her? I need a new back axle for my one here also, tried one from a slightly later 18" cut self propelled victa but didnt fit due to the different height adjustment.
|
|
|
|
|
Joined: Jul 2012
Posts: 523 Likes: 1
Qualified Senior
|
Yea they did start restoring her. That had it as part of there collection. Bad part is they gutted the auto drive parts so most likely wont ever be a auto drive again lol
|
|
|
|
|
Joined: Jul 2012
Posts: 523 Likes: 1
Qualified Senior
|
Do these models normally have the lm/g4 carby?
|
|
|
|
|
|
Joe Carroll
Unregistered
|
Some had G3 and later ones had g4 with a remote primer...
|
|
|
|
|
Joined: Jul 2012
Posts: 523 Likes: 1
Qualified Senior
|
Ok cause from the pictures I can see a g4 thats not hanging there. But maybe it is the model that has one
|
|
|
|
|
Joined: May 2011
Posts: 2,738 Likes: 6
Forum Historian
|
It's a later one, 1974-78, G4 (predecessor to LM) carby, and the revised mkii autodrive gearbox, i dhould have the full specs here somewhere, I'll post them when i can find them.
Cheers
Ty
____________________________
Please do not PM me asking for support. Please post your questions in the appropriate forums, as the replies it may receive may help all members, not just the individual member.
|
|
|
|
|
Joined: May 2011
Posts: 2,738 Likes: 6
Forum Historian
|
Ok, so it's either a 1974-75 v169, mkIII Vc-auto drive, with MKI drive system, or a 1975-78 V198, MKIV with the MKII vc drive system ( there were two variants of this drive system, it was slightly modified in 1976) the eaiest way to tell for sure is the control, if you flip a metal bar to engage the drive, it's the 74 V169, if you squeeze a plastic lever on the right hand, it's a 1975-78 V198. If you post a pic of the full handle bars, i can post pics of the exact drive assy. To look out for.
Cheers
Ty
____________________________
Please do not PM me asking for support. Please post your questions in the appropriate forums, as the replies it may receive may help all members, not just the individual member.
|
|
|
|
|
Joined: Jul 2012
Posts: 523 Likes: 1
Qualified Senior
|
|
|
|
|
|
|
Joined: May 2011
Posts: 2,738 Likes: 6
Forum Historian
|
Until you can get a pic up of the handles, can you describe them, on particular the area you put your hands, and any controls aside from throttle?
Cheers
Ty
____________________________
Please do not PM me asking for support. Please post your questions in the appropriate forums, as the replies it may receive may help all members, not just the individual member.
|
|
|
|
|
Joined: May 2011
Posts: 2,738 Likes: 6
Forum Historian
|
Also, you should find the info in this post helpfull, although i do have some updates to come for it, it will give you sone details on the mower, and how it fits into the model line up. https://www.outdoorking-forum.com.au/forum/u...amp;Main=5780&Number=23537#Post23537
Cheers
Ty
